Radio Modems: Copper Mine Production

1.Background

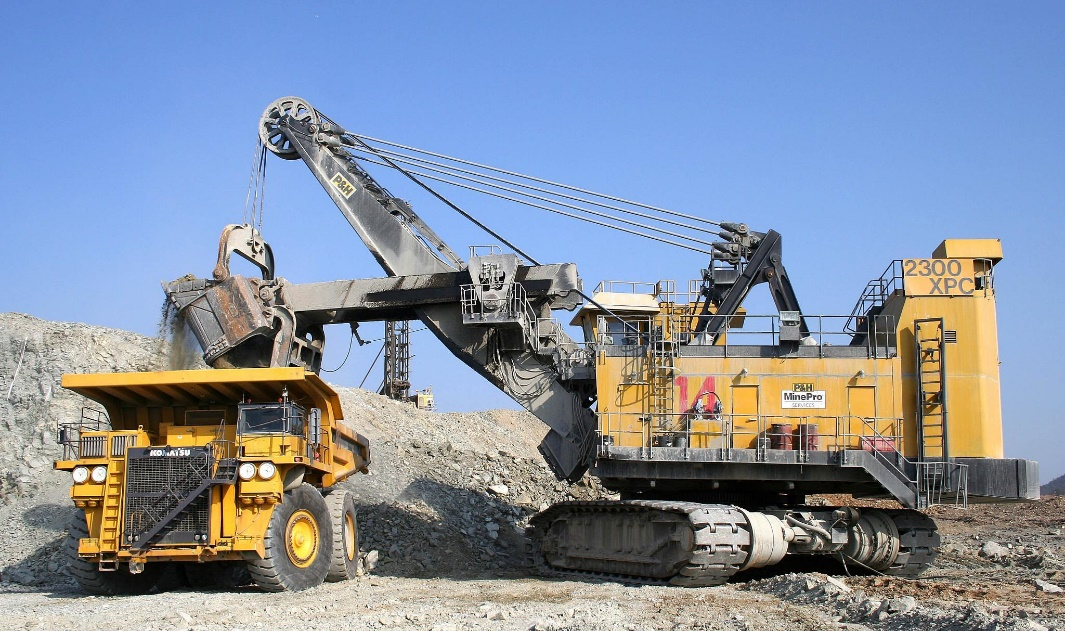

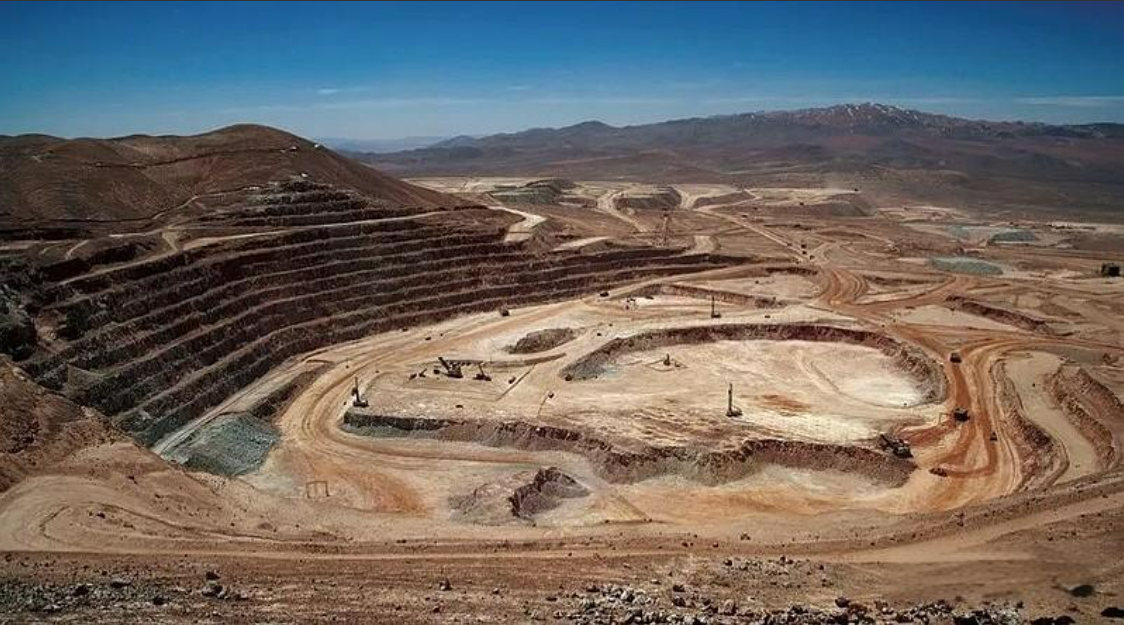

There are various of excavation sites called mines where various types of minerals, metals, and other geological resources are extracted from the earth. Some of the common types of mines include: (1)Coal Mines; (2)Metal mines; (3)Diamond mines; (4)Oil and gas mines; (5)Salt mines; (6)Potash mines; (7)Uranium mines; (8)Precious metal mines; (9)Gemstone mines; (10)Quarry; (11)Tungsten mines; (12)Nickel mines; (13)Lithium mines; (14)Bauxite mines; (15)Copper mines; (16)Lead mines; (17)Zinc mines; (18)Tin mines; (19)Manganese mines; (20)Chromium mines.

In copper mining, various sensors are utilized to monitor different parameters and the following sensors are often used: (1)Gas concentration sensors; (2)Seismic sensors; (3)Displacement and tilt sensors; (4)Water quality monitors; (5)Temperature sensors; (6)Strain sensors; (7)Stress sensors; (8)Water level sensors.

Some remote control equipment are used to ensure the safety and efficiency of mining operations: (1) Remote Control Loaders; (2) GNSS positioning devices; (3) Safety monitoring apparatus; (4)Remote-control and autonomous driving equipment; (5)Wireless Sensors.

These sensors and remote control systems play a crucial role in making copper mining safer and more efficient, allowing for real-time monitoring and response to potential risks and issues.

In copper mine extraction operations, traditional data transmission methods are limited by complex terrains and difficulties in wiring, making it challenging to meet the requirements of efficient and real-time data collection and monitoring. Wireless data transmission technology can effectively address these issues and enhance the intelligent management level of copper mine production.

2.System Requirements for Copper Mine Production

 (1)Data Types

In copper mine production, various data needs to be transmitted. Data types includes sensors monitoring equipment status (such as temperature, pressure, rotational speed, etc.), ore quality, environmental parameters (gas concentration, humidity, etc.) and production process parameters. For example, sensors on mining machinery constantly collect information such as temperature, vibration, and load. The data also include ore grade monitoring data, underground personnel location information. Additionally, data related to ore transportation, beneficiation processes, and energy consumption must be relayed.

 (2)Transmission Range

Cover the entire copper mine extraction area, from the underground working face to the ground control center, which may involve a transmission distance of several kilometers.

 (3)Real-time Performance

For equipment failure alarms and personnel emergency situations, real-time transmission to the control center is required, generally with a delay of no more than seconds. For regular equipment operation data and environmental monitoring data, a certain transmission delay can be tolerated, but it should also be minimized.

 (4)Reliability and Stability in Harsh Environments

Due to the harsh production environment of the copper mine, signals are prone to interference. There are issues like strong electromagnetic interference from large mining equipment, extreme temperatures ranging from scorching heat in summer to freezing cold in winter, high humidity in certain areas, and significant dust and vibration levels. A reliable radio modem must possess high reliability and stability to ensure that critical data is not lost or mis-transmitted, with the bit error rate controlled at an extremely low level. Any communication failure could lead to production halts, equipment damage, or even safety hazards. For instance, if the communication link between a control center and a remotely operated drilling rig fails, it could result in improper drilling operations and potential equipment breakdown.

 (5)Compatibility with Existing Equipment

Most copper mines already have a range of existing machinery and control systems in place. These may include programmable logic controllers (PLCs), Supervisory Control and Data Acquisition (SCADA) systems, conveyor belts, crushers, and grinding mills. The radio modem solution must be seamlessly compatible with these legacy systems. It should be able to interface with different types of equipment controllers and data acquisition units, allowing for smooth integration into the overall production infrastructure. This compatibility ensures that the new communication technology can enhance rather than disrupt the existing production processes. For example, it should support common communication protocols to communicate effectively with industrial controllers already deployed in the mine.

3. System Composition

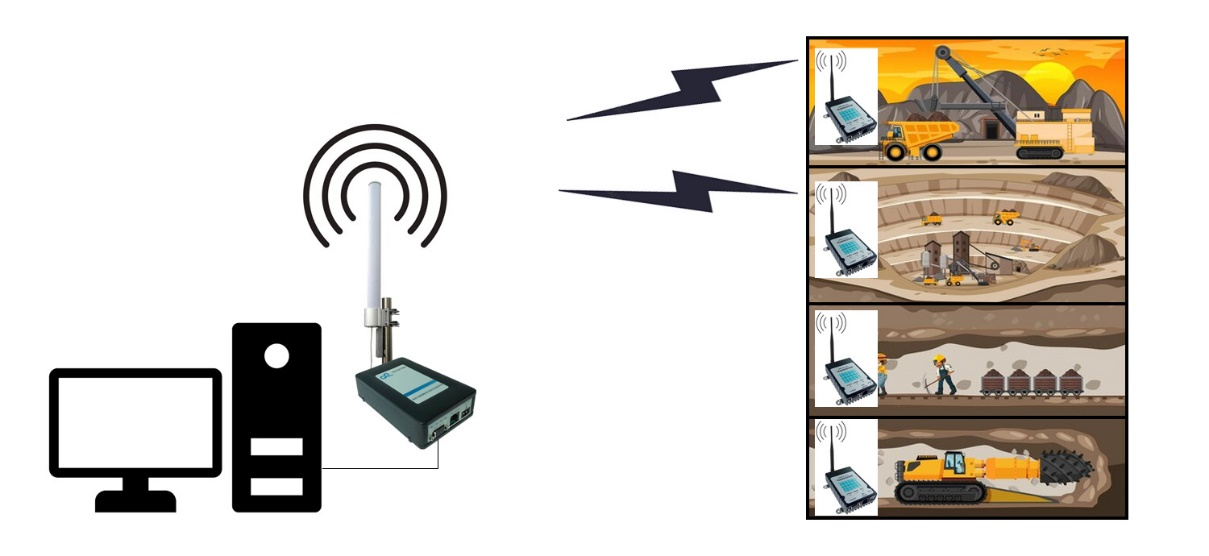

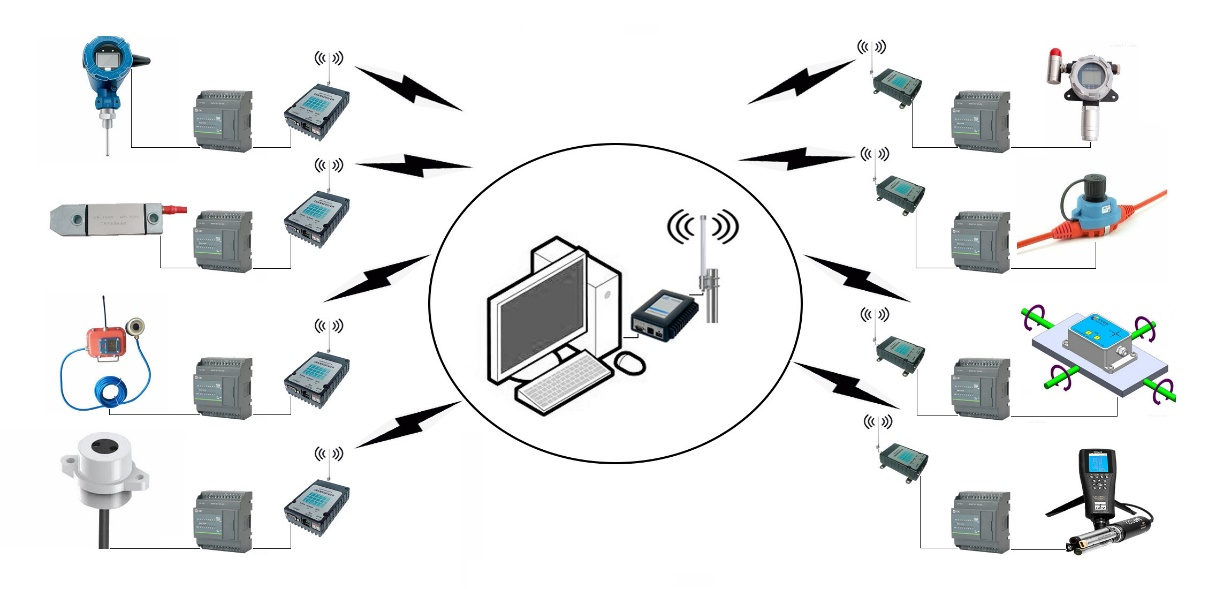

The radio modem system in a copper mine forms a comprehensive wireless communication network. At the core of the mine, there is a central control station, which acts as the nerve center. It is connected to one or more base stations strategically located throughout the mining area. Mobile devices, such as those mounted on mining vehicles, and fixed remote terminals, placed near key equipment like crushers and conveyors, are equipped with radio modems. Data generated by sensors on the equipment or entered manually by operators is transmitted wirelessly to the nearest base station. The base stations then forward the data to the central control station in real-time. This two-way communication allows for commands and instructions from the control center to be transmitted back to the field devices, enabling remote control and monitoring of the entire production process.

Key Components and their functions are as follows.

 (1)Antennas

Antennas play a crucial role in transmitting and receiving radio signals. In a copper mine environment, both omnidirectional and directional antennas could be used. For example, at the base stations, high-gain omnidirectional antennas are installed to communicate with any slave stations around it. In mobile slave stations, omnidirectional antennas are preferred as they can receive signals from any direction while the vehicle is in motion. As for remote fixed slave stations, directional antennas are often used to help increasing the signal strength and reduce interference. The selection of antennas needs to take into account the mine's topography, equipment layout, and potential obstructions to ensure optimal signal propagation.

 (2)Transmitters

The transmitters within the radio modem convert digital data from the connected devices, such as sensor readings or control commands, into radio frequency signals. High-power transmitters are used at the base stations to cover large areas, while lower-power ones on mobile devices conserve energy and meet regulatory requirements.

 (3)Receivers

Receivers perform the opposite function of transmitters. They capture the incoming radio signals, demodulate them to extract the original digital data, and pass it on to the connected equipment or the control system. In a mine, where data accuracy is vital for safe and efficient operation, receivers need to be highly sensitive and able to filter out unwanted interference. For example, a receiver at a conveyor belt control terminal must accurately receive speed adjustment commands from the central control station to maintain the proper flow of ore.

4. Master Station Equipment Composition

 (1)Central Control Unit

The central control unit serves as the “brain” of the entire radio modem system in a copper mine. It is responsible for managing and coordinating the vast flow of data that inundates the mine’s operational network. This unit continuously monitors the status of all connected devices, including mining equipment, sensors, and remote terminals. It receives real-time data from various sources, processes it using advanced algorithms, and makes intelligent decisions based on predefined parameters and operational requirements. For example, when it detects an abnormal temperature rise in a crusher motor, it can immediately trigger an alarm and send commands to adjust the operating parameters or even shut down the equipment to prevent a catastrophic failure.

 (2)Data Storage and Processing Devices

Data storage and processing devices play a critical role in handling the copious amounts of data generated in a copper mine. These devices are equipped with high-capacity hard drives or solid-state drives capable of storing historical data, which can be used for trend analysis, performance evaluation, and regulatory compliance. Advanced data processing software and algorithms are employed to analyze the incoming data in real-time. For instance, data on ore quality from multiple sampling points can be aggregated and analyzed to optimize the beneficiation process. By correlating this data with production output and energy consumption, mine operators can make informed decisions to enhance overall efficiency. Statistical models can be used to predict equipment failures based on historical maintenance records and current operating conditions, enabling proactive maintenance and reducing costly downtime.

 (3)Communication Interface with Slave Stations

The communication interface between the master station and slave stations is the linchpin that ensures the integrity and efficiency of the entire radio modem network. It must be designed to support seamless, two-way communication, enabling the master station to issue commands and receive status updates from slave stations without delay or data loss. High-speed serial communication protocols such as RS-485 are commonly used. The interfaces are engineered to withstand the harsh electromagnetic environment of the mine and maintain reliable connections over long distances. Redundant communication paths can also be implemented to ensure continuous operation in case of a primary link failure. The interface is constantly monitored and managed by the central control unit to guarantee optimal performance and rapid fault detection and resolution.

5. Slave Station Equipment Composition

 (1)Sensor Devices for Data Collection

In the context of a copper mine, slave stations are equipped with a diverse array of sensor devices to gather critical data. For instance, temperature sensors are placed on motors and gearboxes of mining equipment. In crushers, where the grinding process generates significant heat, temperature sensors monitor the equipment's thermal state to prevent overheating. Vibration sensors are another essential type, commonly installed on conveyor belts, pumps, and drilling rigs. Excessive vibration can indicate misalignment, bearing wear, or other mechanical issues. Pressure sensors are deployed in hydraulic systems, such as those used in ore hoists and crushers, to ensure proper operating pressure. Additionally, gas sensors are utilized in underground mines to detect harmful gases like methane, carbon monoxide, and sulfur dioxide, safeguarding the lives of miners and maintaining a safe working environment. Ore quality sensors, including spectrometers and density meters, are strategically positioned along the ore processing line to measure parameters like copper content, impurities, and particle size distribution. This data is crucial for optimizing the beneficiation process and maximizing copper recovery.

 (2)Actuator Devices for Remote Control

Actuator devices play a pivotal role in enabling remote operation and control of machinery in copper mines. Electric actuators are frequently employed to control the opening and closing of valves in water and slurry pipelines. In the ore beneficiation process, precise control of reagent addition valves is essential, and electric actuators provide the necessary accuracy. Pneumatic actuators are well-suited for applications requiring rapid and forceful movements, such as operating the grippers on loading equipment or controlling the position of ventilation dampers in underground mines. Hydraulic actuators are used in heavy-duty machinery, like the boom and bucket movements of large excavators. They can handle high loads and provide smooth and precise control, enhancing the efficiency and safety of mining operations. These actuators receive control signals from the master station via the radio modem network, translating them into physical actions that drive the equipment, allowing operators to manage processes from a central location.

 (3)Local Control Unit and Communication Module

The local control unit at each slave station serves as the on-site “brain,” ensuring efficient operation in coordination with the master station. It is responsible for processing data received from the sensors, performing initial analysis, and making local decisions when necessary. For example, if a local temperature sensor detects a sudden rise in a piece of equipment's temperature, the local control unit can trigger an immediate alarm and, in some cases, initiate emergency cooling procedures without waiting for instructions from the master station. This local autonomy helps to prevent minor issues from escalating into major failures. The communication module, integrated with the local control unit, is designed to interface with the radio modem. It encodes the data from the sensors and actuator statuses into a format suitable for wireless transmission and sends it to the master station. Simultaneously, it receives commands from the master station, decodes them, and relays the appropriate signals to the actuators. The communication module employs advanced error-checking and correction techniques to ensure the integrity of data transmission, even in the presence of interference. It also manages the power consumption of the radio modem and other connected devices, optimizing battery life for mobile or remotely located slave stations.

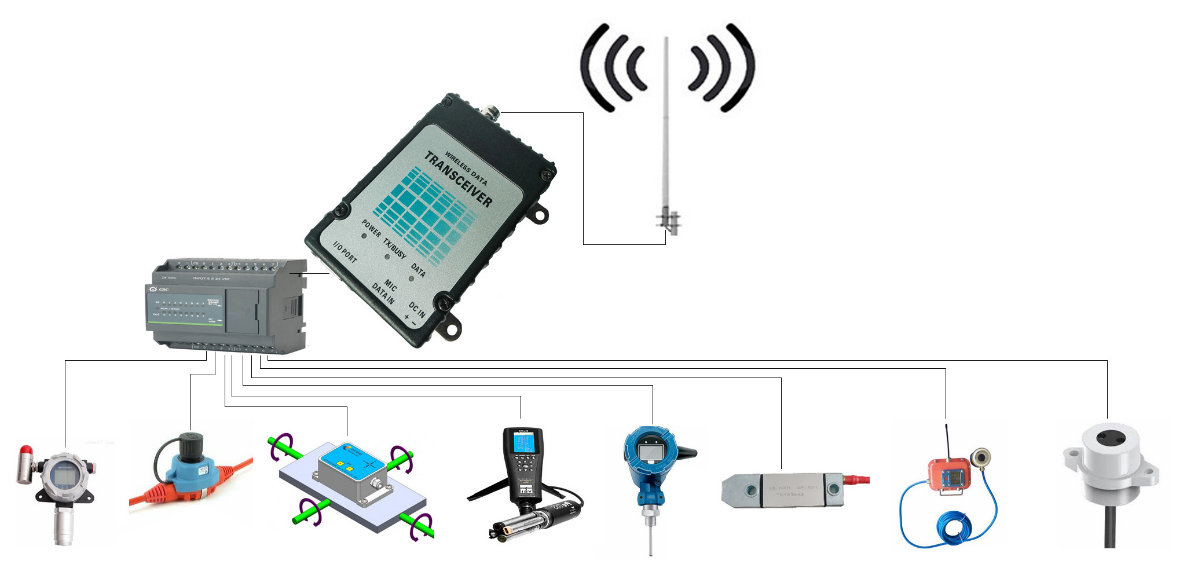

In slave station, the radio modem might use the Modbus protocol to communicate with a PLC controlling a pump station, allowing for seamless integration of the wireless communication into the existing automation infrastructure.

6. Working Process Description

 (1)Data Acquisition and Transmission

Data acquisition in a copper mine begins with sensors placed strategically on various pieces of equipment and in different areas of the mine. These sensors, as part of the slave stations, continuously monitor parameters such as temperature, vibration, pressure, and ore quality. Once the sensors collect data, it is sent to the local control unit at the slave station. The local control unit processes the data, performing basic checks for errors and formatting it into a suitable packet for transmission. The radio modem at the slave station then transmits this data packet wirelessly to the base station and then to the master station. For example, in a large open-pit copper mine, sensors on the haul trucks monitor tire pressure, engine temperature, and fuel levels. The data is transmitted frequently to ensure the trucks operate optimally and to prevent breakdowns that could halt ore transportation.

 (2)Command Issuance and Execution

The master station, based on the data received and predefined operational strategies, formulates commands. These commands could be to adjust the speed of a conveyor belt, change the operating parameters of a crusher, or redirect the flow of ore in a beneficiation process. The commands are packaged and sent through the communication interface to the relevant slave stations. At the slave station, the communication module receives the command, decodes it, and passes it to the local control unit. The local control unit then activates the appropriate actuator devices. For instance, if the master station detects an overload on a conveyor belt, it sends a command to slow down the feeding rate. The actuator on the feeder equipment at the slave station responds by adjusting the gate opening, reducing the amount of ore being loaded onto the conveyor.

 (3)Real-time Monitoring and Feedback

Continuous real-time monitoring is the backbone of efficient copper mine production using radio modems. The master station constantly displays and analyzes the incoming data from all slave stations. Operators and automated control systems can detect any anomalies or deviations from normal operating conditions immediately. When an issue is identified, alerts are generated, and corrective actions can be taken promptly. Simultaneously, the slave stations provide feedback on the execution of commands. For example, after receiving a command to start a pump, the slave station sends back confirmation that the pump has started and its current operating parameters. This feedback loop ensures that the master station has accurate information about the status of the entire operation, allowing for further adjustments if necessary to maintain smooth and safe production.

7. Conclusion

The application of radio modem technology in copper mine production has brought about significant advantages. It has enabled seamless wireless data transmission, allowing for real-time monitoring and control of mining equipment and processes. The system's ability to handle large data volumes at high speeds has enhanced operational efficiency, minimizing production delays and optimizing resource allocation. In harsh mine environments, the reliable performance of radio modems has ensured stable communication, reducing the risk of equipment failures and safety incidents. By seamlessly integrating with existing equipment, it has provided a cost-effective solution for upgrading the mine's communication infrastructure without major disruptions to ongoing operations. Overall, radio modems have become an indispensable tool for modern copper mine production, contributing to increased productivity, improved safety, and better resource management.
