To safeguard RF equipment from voltage surges caused by any lightning strikes.

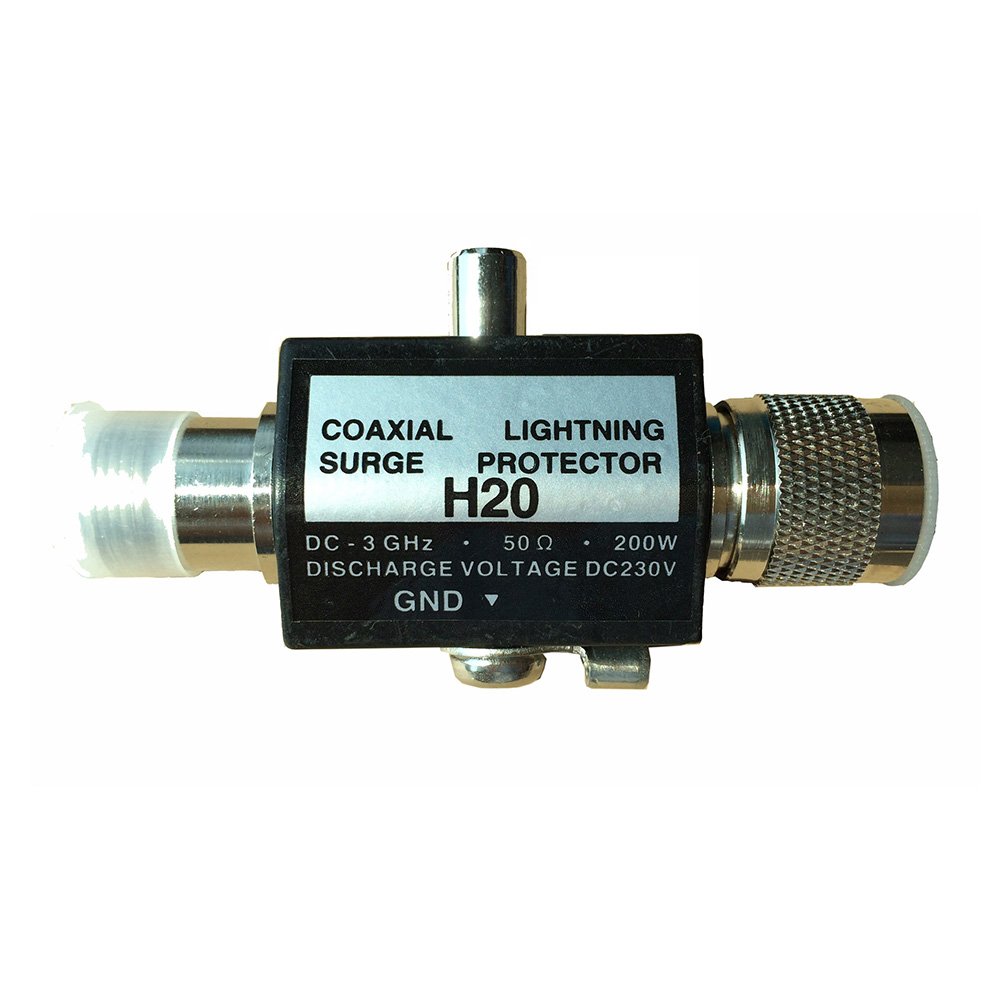

A coaxial lightning arrester is a protective device designed to safeguard RF equipment from voltage surges caused by lightning strikes or other transient overvoltages. Its primary function is to provide a low-impedance path to the ground when a voltage surge occurs, thereby diverting the excess voltage and current away from sensitive RF components. This helps prevent damage to the equipment and ensures the continuity of operation.
Specifications of RF Lightning Surge Arrester
| Model | GDA-H20 |
| Interface Type | N-J and N-K |
| Max Input Power | 200W |
| VSWR | <1.15 |
| Insertion Loss | 0.35dB |
| Frequency Range | DC-3GHz |
| Impedance | 50 Ohm |
| Dimensions | 82x46mm |
| Weight | 109g |
| Operating Temperature | -55ºC to +125ºC |
